Westinghouse WPX3400 Gas Pressure Washer Review: The Ultimate Heavy-Duty Cleaning Powerhouse

If you are struggling with stubborn oil stains on driveways, weathered wooden decks, moss-covered patios, or peeling exterior paint, entry-level electric pressure washers simply lack the necessary force. The Westinghouse WPX3400 Gas Pressure Washer steps in as a commercial-grade, heavy-duty cleaning solution engineered for homeowners, contractors, and DIY enthusiasts who demand unyielding cleaning power.

Delivering an impressive 3,400 PSI (Pounds per Square Inch) at 2.6 GPM (Gallons per Minute), the WPX3400 produces a total cleaning power score of 8,840 Cleaning Units (CU). Driven by a robust 212cc 4-stroke OHV engine, an axial cam brass-head pump, and a heavy-duty steel cart with 12-inch never-flat wheels, this machine blends durability, mobility, and sheer cleaning efficiency.

In this comprehensive, data-backed review, we examine every aspect of the Westinghouse WPX3400—from unboxing and assembly to real-world cleaning tests, maintenance practices, and head-to-head comparisons.

Key Technical Specifications at a Glance

1. Engine & Pump Architecture: The Heart of the WPX3400

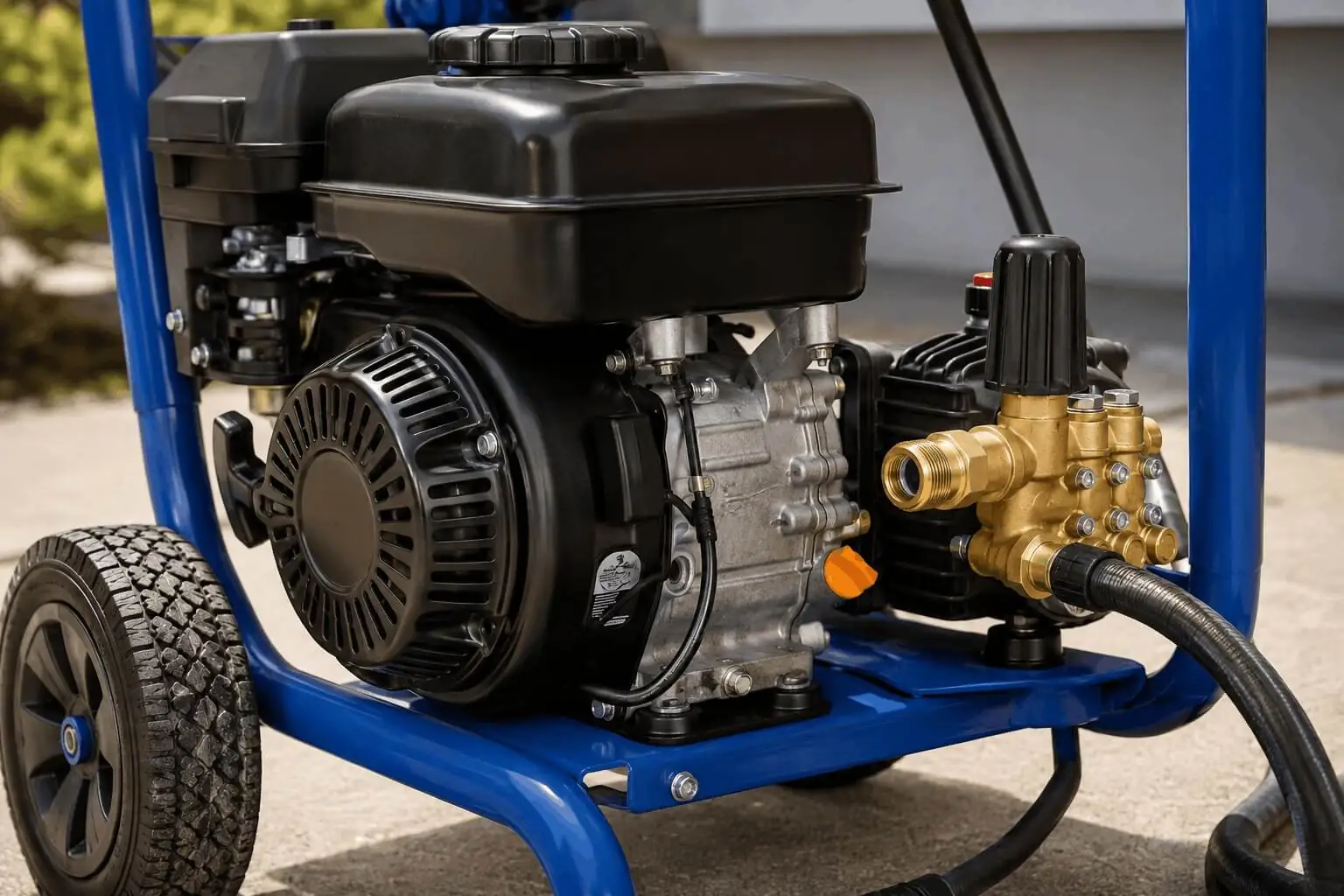

At the core of the Westinghouse WPX3400 lies a commercial-grade 212cc 4-Stroke OHV (Overhead Valve) horizontal shaft engine. Unlike underpowered consumer models that rely on vertical-shaft engines prone to heat buildup, horizontal shaft configurations offer superior heat dissipation, smoother torque delivery, and significantly longer operational lifespans.

+——————————————————————-+

|               Westinghouse WPX3400 Power Train                    |

|                                                                   |

|   [212cc 4-Stroke OHV Engine] ───> [Maintenance-Free Axial Pump]  |

|               │                                    │              |

|        (Recoil Start)                     (3,400 PSI @ 2.6 GPM)   |

|               │                                    │              |

|   [1.0 Gallon Fuel Tank]             [Thermal Relief Protection]  |

+——————————————————————-+

Axial Cam Pump Performance

Coupled directly to the 212cc engine is an axial cam pump. This pump design is factory-sealed and engineered to be 100% maintenance-free—meaning you do not need to constantly change pump oil or grease internal bearings under normal residential use.

Key advantages of this engine and pump synergy include:

1. Consistent Pressure Output: The axial cam mechanism delivers a steady 3,400 PSI without pulsing or sudden drops in water pressure.
2. Thermal Relief Valve: Protects the pump from overheating if the trigger is released while the engine continues to idle.
3. Optimized Fuel Economy: The 1-gallon fuel tank provides up to 1.5 to 2 hours of continuous run time depending on the nozzle tip and throttle level.

2. Real-World Cleaning Applications & Versatility

With 8,840 Cleaning Units, the Westinghouse WPX3400 is not limited to light chores. It effortlessly handles the toughest residential and semi-commercial tasks:

A. Concrete Driveways, Sidewalks, and Garage Floors

Oil drips, tire marks, embedded moss, and years of baked-on dirt lift off instantly under 3,400 PSI. When paired with an optional 15-inch or 16.5-inch surface cleaner attachment, cleaning times on expansive driveways are cut by up to 60%.

B. Wooden Decks, Fences, and Composite Railings

Using the wider 25° or 40° nozzle tips, the WPX3400 strips away weathered grey oxidation, mildew, and failing stain without gouging soft cedar or pine wood grain when maintained at a safe 12-to-18-inch distance.

C. Home Siding, Stucco, and Brick Facades

Algae and mildew clinging to vinyl siding or porous brick mortar vanish quickly. The onboard half-gallon detergent tank allows you to pre-treat walls with specialized siding cleaner before switching to the rinse nozzles.

D. Vehicle, Boat, and RV Detailing

While 3,400 PSI is too intense for direct car paint, the 40° white tip combined with the onboard soap reservoir (or an aftermarket M22 foam cannon) provides a rich foam lather followed by a gentle, broad rinse that leaves clear coats spotless.

3. Included Nozzle Tips & How to Use Them

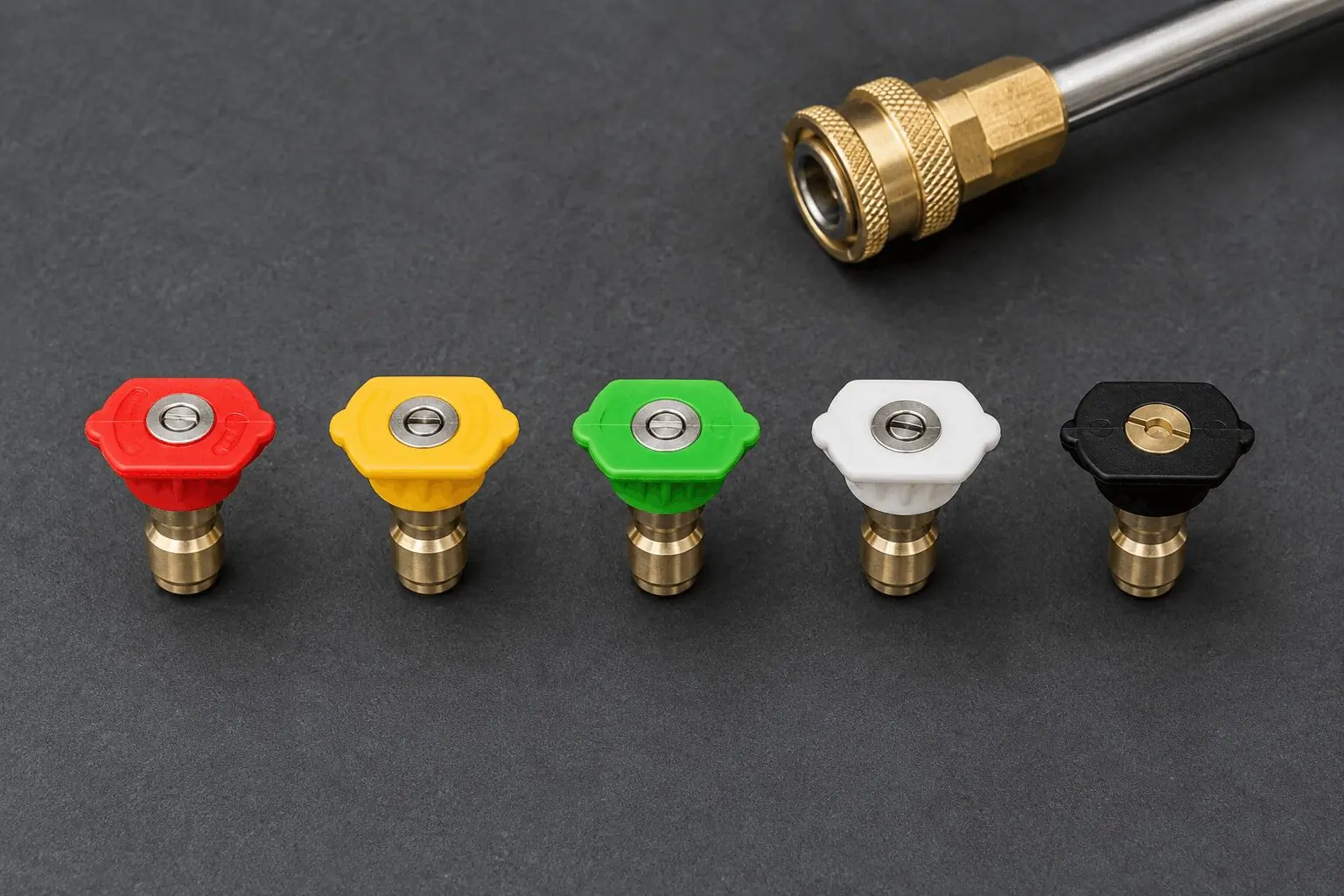

The Westinghouse WPX3400 comes standard with 5 color-coded quick-connect spray nozzles that dock neatly into the integrated dashboard holder on the handle:

[0° Red Tip]     ──> Extreme Pinpoint Jet (Concrete cracks, paint stripping, metal rust)

[15° Yellow Tip] ──> Heavy-Duty Chiseling (Brickwork, masonry, unpainted concrete)

[25° Green Tip]  ──> General Cleaning (Wood decks, stone patios, vinyl siding, fences)

[40° White Tip]  ──> Wide Gentle Wash (Cars, RVs, outdoor glass, painted surfaces)

[Black Soap Tip] ──> Low-Pressure Detergent Dispenser (Activates onboard soap siphon)

• 0° Red (Pinpoint Blast): Produces a razor-sharp, concentrated jet of water. Reserved exclusively for heavy rust removal, hard stain eradication in concrete joints, or peeling paint. (Never use on wood or vehicles!)
• 15° Yellow (Chisel Fan): Excellent for aggressive surface stripping, concrete preparation, and removing stubborn biological growth.
• 25° Green (All-Around Workhorse): The most versatile nozzle for washing decks, walkways, aluminum siding, and garden furniture.
• 40° White (Wide Fan): Soft, dispersed spray ideal for delicate surfaces like window frames, patio furniture, and vehicle panels.
• Black Soap Nozzle: Drops line pressure automatically, engaging the vacuum venturi siphon to draw detergent from the onboard 0.5-gallon tank.

4. Design, Build Quality, and Ergonomics

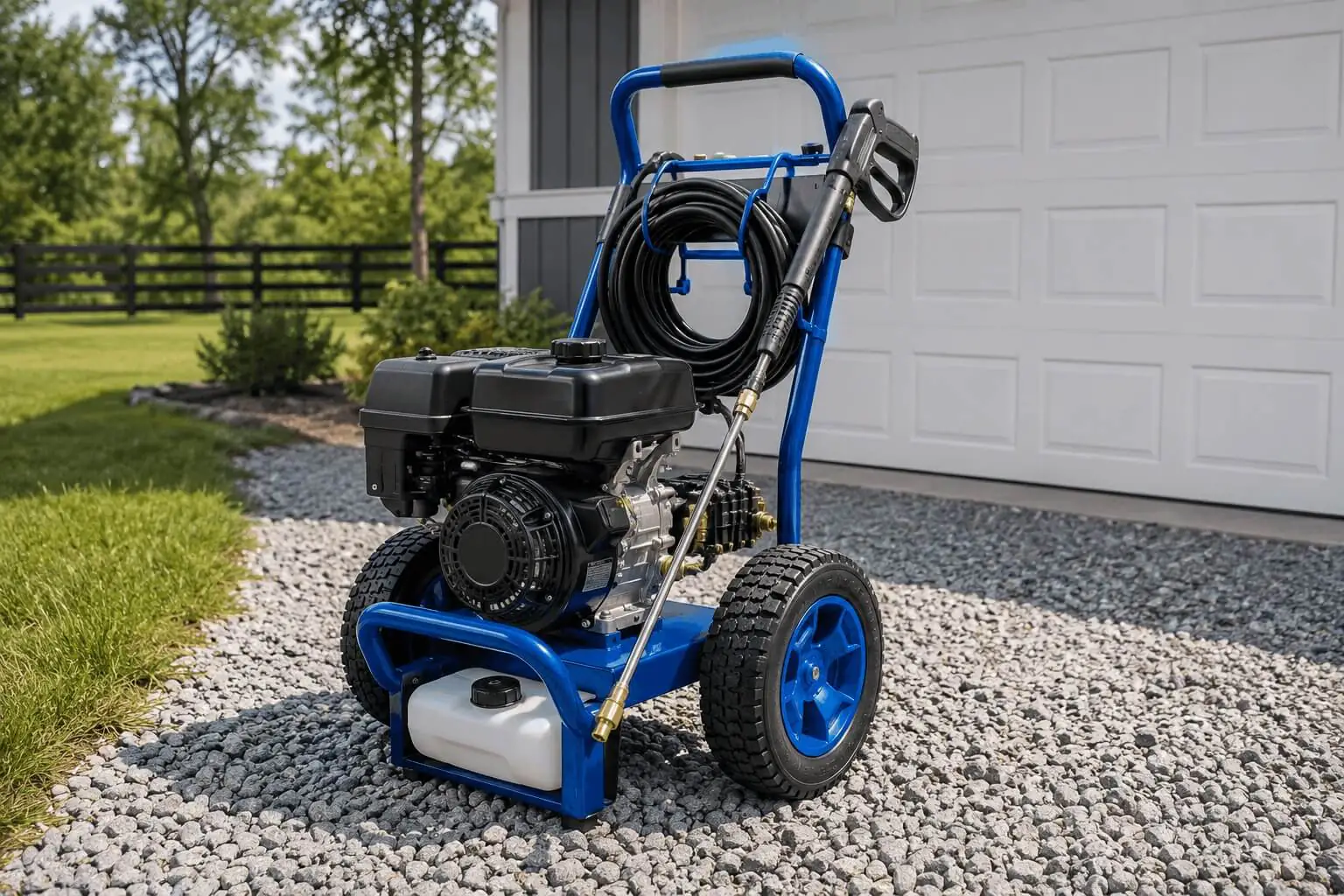

Rugged Steel Cart Frame

The frame is constructed from thick, high-tensile tubular steel coated with an industrial corrosion-resistant blue powder finish. The low center of gravity prevents the unit from tipping over when you pull on the hose.

12-Inch High-Profile Never-Flat Wheels

Navigating muddy lawns, uneven gravel paths, steps, or construction debris is smooth thanks to the oversized 12-inch solid rubber tires. Because they are 100% puncture-proof, you will never face flat-tire downtime.

25-Foot Super-Flex High-Pressure Hose

The included 25-foot hose is abrasion-resistant and features standard M22 threaded brass connectors. Its super-flex rubberized coating minimizes annoying coiling, kinking, and scuff marks on clean concrete.

Integrated Detergent Management

Unlike external siphon tubes that dangle and tangle, the WPX3400 features a built-in 0.5-gallon (half-gallon) onboard soap reservoir. It allows you to tackle large-scale siding washes without lugging separate chemical jugs around.

5. Setup, Assembly, and Starting Procedure

Setting up the Westinghouse WPX3400 out of the box takes under 10 minutes:

Step 1: Unbox Unit & Install Handle and Nozzle Tray

Step 2: Attach the 12″ Wheels and Rubber Feet

Step 3: Add Included 4-Stroke Engine Oil (Check dipstick level)

Step 4: Fill Fuel Tank with Clean Unleaded Gasoline (87+ Octane)

Step 5: Connect Garden Water Supply & High-Pressure Hose

Step 6: Purge Air from System by Squeezing the Gun Trigger for 30 Seconds

Step 7: Flip Fuel Valve to ON, Set Choke, and Pull Recoil Cord

Starting in 3 Easy Pulls:

1. Ensure the water supply is fully turned on and air is purged from the pump.
2. Turn the engine switch to the ON position and slide the fuel valve to OPEN.
3. Move the choke lever to the CHOKE position (for cold starts).
4. Squeeze the spray gun trigger to relieve built-up backpressure in the line.
5. Give the heavy-duty recoil starter a brisk, firm pull.
6. Once the engine catches, smoothly return the choke to the RUN position.

6. Comprehensive Pros & Cons Analysis

Pros

• Tremendous Cleaning Velocity: 3400 PSI and 2.6 GPM chew through tough jobs in a fraction of the time needed by electric models.
• Commercial-Grade 212cc Engine: Reliable 4-stroke horizontal shaft motor built for longevity.
• Maintenance-Free Axial Cam Pump: Factory sealed with thermal protection.
• Onboard Soap Tank: Convenient half-gallon reservoir eliminates messy external buckets.
• Puncture-Proof 12-Inch Tires: Excellent maneuverability over rugged yard terrain.
• Complete Starter Kit Included: Comes with engine oil, funnel, spark plug wrench, and quick-start manual.
• Industry-Leading Warranty: 3-year limited warranty backed by nationwide Westinghouse service centers.

Cons

• Weight: At 28.6 kg (~63 lbs), lifting it into a tall truck bed requires some effort (though the wheels make ground rolling effortless).
• Sound Level: Like all gas-powered equipment, it produces standard engine noise; ear protection is recommended during prolonged use.
• Hose Length: 25 feet is sufficient for standard driveways, but larger properties or two-story home washings may require an optional 50-foot extension hose.

7. Comparative Benchmark: Westinghouse WPX3400 vs Competitors

Verdict: The Westinghouse WPX3400 edges out key competitors by offering higher PSI (3,400), superior water volume (2.6 GPM), larger 12-inch wheels, and a built-in soap tank at a highly competitive price point.

8. Essential Maintenance & Longevity Guide

To ensure your Westinghouse WPX3400 runs flawlessly for 10+ years, follow these preventive maintenance guidelines:

Regular Maintenance Schedule

1. Engine Oil Changes: Change the initial break-in oil after the first 5 hours of operation. Subsequently, change oil every 50 operating hours or at the start of each season using SAE 10W-30 4-stroke oil.
2. Air Filter Inspection: Inspect the dual-element foam air cleaner every 25 hours. Wash in warm soapy water, dry completely, and lightly oil if operating in dusty environments.
3. Spark Plug Cleaning: Check and re-gap the spark plug once per season (gap spec: 0.70 – 0.80 mm).
4. Water Inlet Filter Screen: Routinely rinse the stainless mesh screen at the garden hose connection to prevent grit from entering the axial cam pump.

Winterization & Long-Term Storage

• Fuel Stabilizer: Always add fuel stabilizer to fresh unleaded gas, run the machine for 5 minutes to circulate treated fuel into the carburetor, or drain the float bowl completely prior to winter storage.
• Pump Saver Solution: Inject an aerosol pump protector/antifreeze into the water inlet before freezing temperatures arrive. This lubricates internal pump seals and prevents catastrophic freeze cracking.

9. Frequently Asked Questions (FAQs)

Q1: What type of oil does the Westinghouse WPX3400 take?

A: The WPX3400 requires standard 4-stroke engine oil (SAE 10W-30 is recommended for general climates; SAE 5W-30 for cold weather). A starter bottle of oil is included in the box.

Q2: Can I use hot water with this pressure washer?

A: No. The WPX3400 is strictly a cold-water pressure washer. Connecting hot water supply lines exceeding 104°F (40°C) will damage the axial cam pump seals.

Q3: How do I activate the onboard soap dispenser?

A: Simply snap the Black Soap Nozzle into the quick-connect wand. The black tip reduces water pressure, automatically opening the internal suction valve to draw soap from the half-gallon onboard reservoir.

Q4: Does the machine come with surface cleaner attachments?

A: The standard package includes the wand, 25-ft hose, and 5 nozzles. Compatible 15-inch and 16.5-inch surface cleaners, undercarriage wands, and foam cannons utilizing standard 1/4″ quick-connect or M22 fittings can be purchased separately.

Q5: Why is my pressure washer surging or losing pressure?

A: Surging is almost always caused by restricted water flow from the garden hose, trapped air in the line, or a partially clogged nozzle tip. Ensure your water supply delivers at least 3.0+ GPM, clean the nozzle orifice with the included nozzle pin, and purge air before starting.

10. Final Verdict: Should You Buy the Westinghouse WPX3400?

The Westinghouse WPX3400 Gas Pressure Washer stands out as one of the most balanced, powerful, and user-friendly gas pressure washers on the market today. By combining raw 3,400 PSI muscle with a dependable 212cc engine, an onboard detergent tank, rugged 12-inch wheels, and a solid 3-year warranty, Westinghouse has engineered a true heavy-duty cleaning solution that outperforms its price tag.

Whether you are restoring neglected patios, stripping grime from commercial equipment, or maintaining your home’s exterior curb appeal, the WPX3400 delivers professional-grade cleaning results with effortless reliability.

Disclaimer: All product names, logos, and brands are property of their respective owners. Specifications and warranty details are based on manufacturer documentation.
