Commercial pressure washing demands reliable, high-performance equipment that can withstand hours of heavy-duty operation. While heavy-duty pumps and high-horsepower engines get most of the attention, your commercial pressure washer gun is the primary interface between the machine and the surface you are cleaning.
Using a cheap, residential-grade spray gun with a commercial machine leads to rapid wear, hand fatigue, leaks, and potential safety hazards. Upgrading to a professional-grade pressure washer trigger gun ensures smooth operation, precise flow control, and maximum durability on job sites.
In this comprehensive guide, we will break down the top commercial pressure washer spray guns, explore key features like PSI/GPM ratings, discuss ergonomics, and help you select the exact gun for your rig.
Why Upgrading to a Commercial Pressure Washer Gun Matters
If you are running a professional exterior cleaning or surface restoration business, your trigger gun takes a beating. Residential guns rely on plastic internal valves and low-spec seals that fail under continuous high pressure.
Here is why investing in a true commercial-grade spray gun is essential:
1. High PSI and GPM Capacity
Commercial units generate extreme output. Standard guns cap out at lower pressure levels, whereas commercial trigger guns easily handle 4000 PSI to 5000+ PSI and flow rates from 8 to 12+ GPM. Match your gun’s limits to your machine to prevent internal seal blowouts.
Internal Link Suggestion: If you are running a high-output unit, make sure your pump is up to the task. Read our detailed guide on choosing a [Triplex Pressure Washer Pump].
2. Hot Water Compatibility
Many commercial cleaning jobs—such as grease removal, oil stain treatment, and gum removal—require hot water machines. Commercial spray guns feature thermal-resistant internal seals (Viton or ceramic) that withstand temperatures up to 300°F (148°C) without degrading.
3. Reduced Operator Fatigue
Contractors spend 6 to 10 hours a day holding a pressure washer wand. Standard triggers require continuous finger force, leading to severe hand cramping and repetitive strain injuries. Commercial anti-fatigue guns use Easy-Pull or Zero-Force technology, allowing you to hold the trigger with minimal effort.
4. Rugged Construction

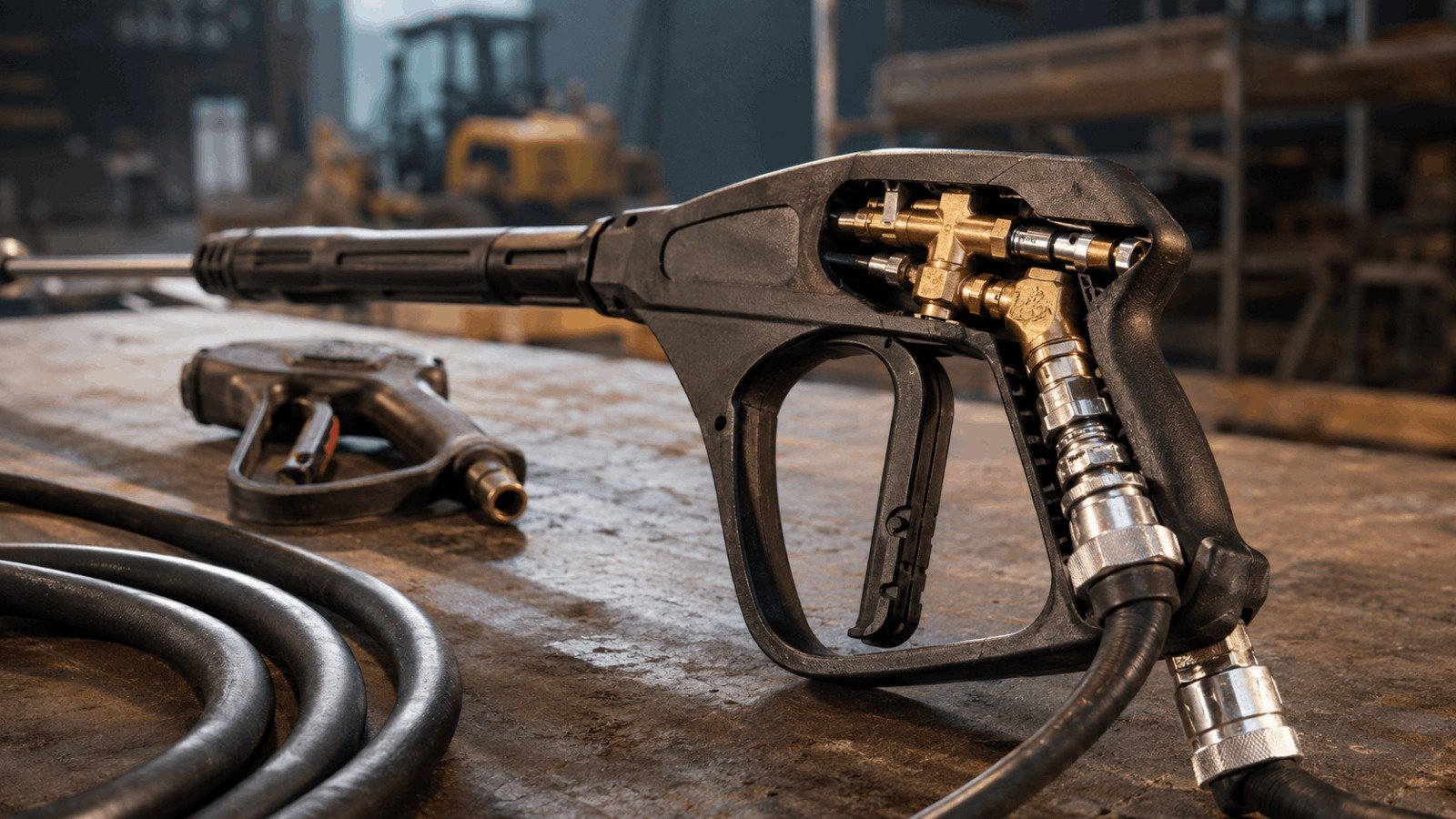

High-grade brass manifolds, stainless steel internal pipes, impact-resistant outer casings, and forged valve housings protect commercial guns from accidental drops, truck bed bumps, and rough job site environments.
Top Features to Look for in a Heavy-Duty Spray Gun
Before selecting a spray gun, review these crucial specifications to ensure full compatibility with your pressure washing setup.
+————————+————————————+————————————-+
| Feature | Commercial Grade Standard | Why It Matters |
+————————+————————————+————————————-+
| Max Pressure (PSI) | 4000 PSI – 5000+ PSI | Prevents internal valve rupture |
| Max Flow Rate (GPM) | 7.0 – 12.0 GPM | Ensures unrestricted water flow |
| Temperature Rating | Up to 300°F (148°C) | Safe for hot water units |
| Inlet/Outlet Threads | 3/8″ FNPT Inlet, 1/4″ FNPT Outlet | Standard commercial fitting sizing |
| Trigger Mechanism | Linear/Easy-Pull or Zero-Force | Reduces hand strain during long shifts|
+————————+————————————+————————————-+
Pressure (PSI) and Flow Rate (GPM) Ratings
Always pick a spray gun whose maximum PSI and GPM ratings exceed your pressure washer’s output. For instance, if you operate a 4000 PSI Honda-powered commercial unit, select a gun rated for at least 4500 PSI or 5000 PSI. Running a gun right at its peak threshold shortens seal life.
Internal Link Suggestion: Pair your high-PSI gun with the right delivery system. Check out our guide on selecting a heavy-duty [Commercial Pressure Washer Hose].
Inlet and Outlet Connection Types
Commercial spray guns typically feature a 3/8″ Female NPT (FNPT) inlet at the bottom of the handle to attach your pressure hose, and a 1/4″ FNPT outlet at the front to attach a lance or quick-connect coupler.
- 3/8″ Quick-Connect Swivels: Installing a brass or stainless steel quick-connect swivel at the base allows the gun to rotate independently of the hose, eliminating kinks and twists while working.
Heat Resistance & Internal Valve Materials
For cold water washing, standard Buna-N or EPDM seals suffice. However, for fleet washing or industrial grease cleaning, choose a gun with Viton seals or ceramic ball valves designed for high-temperature applications.

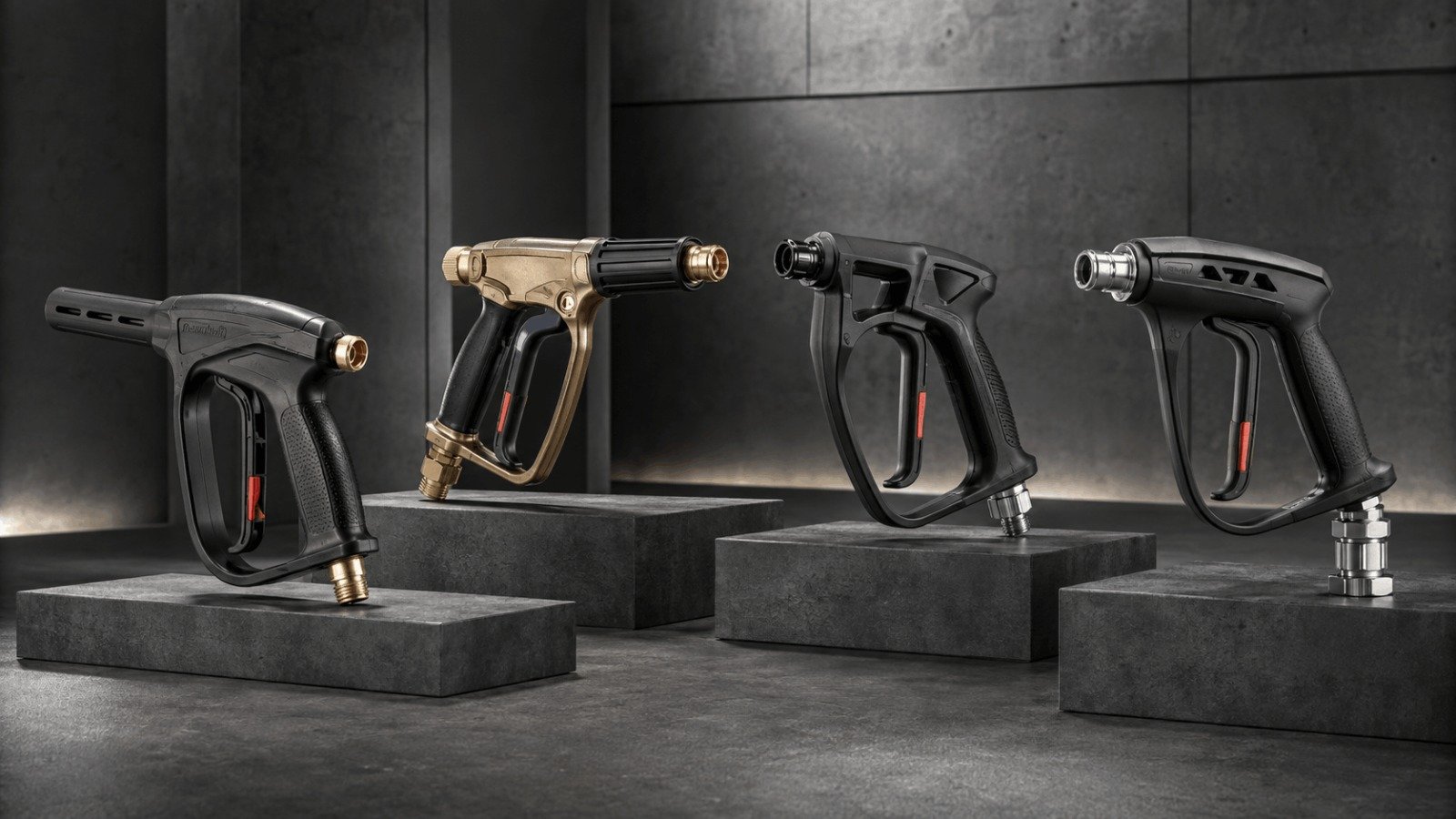

Detailed Reviews: Best Commercial Pressure Washer Spray Guns
Here is a breakdown of the leading commercial pressure washer guns trusted by professional contract cleaners.

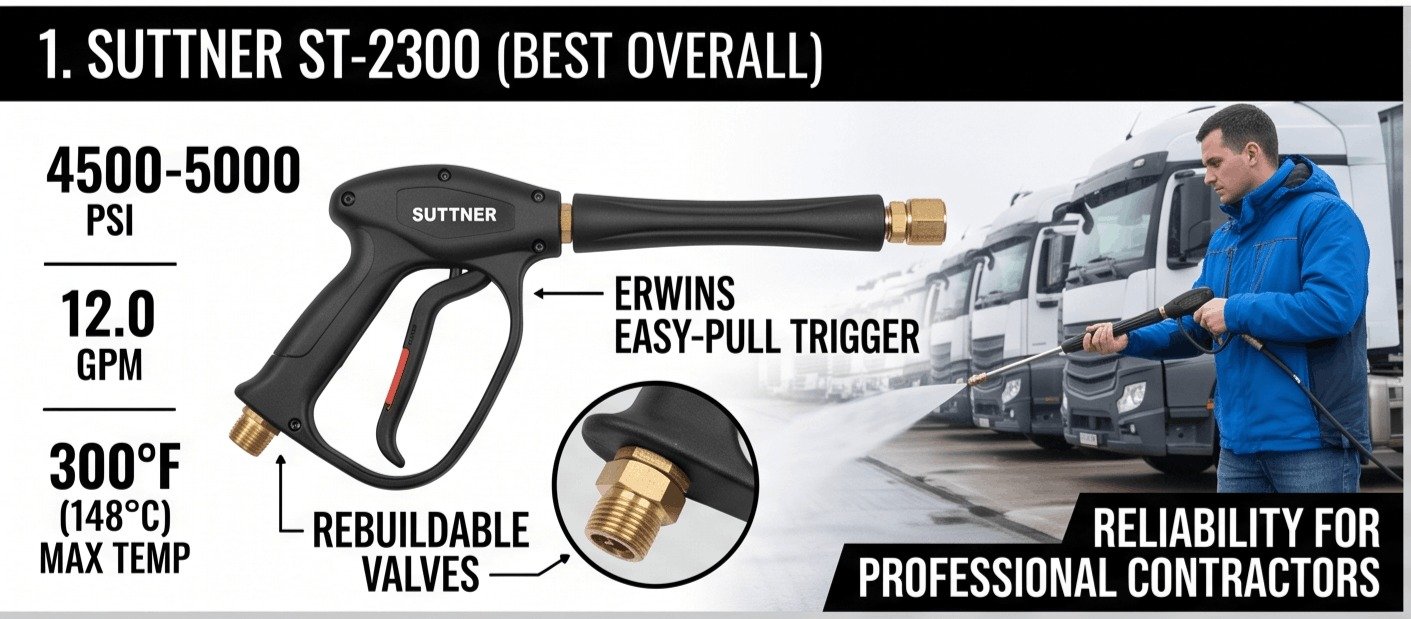

1. Suttner ST-2300 / ST-2600 Series (Best Overall Commercial Gun)
The Suttner ST-2300 series is widely regarded as the industry standard for commercial pressure washing. Engineered in Germany, Suttner guns are renowned for structural durability and effortless operation.
- Max Pressure: 4500 PSI – 5000 PSI
- Max Flow Rate: 12.0 GPM
- Max Temp: 300°F
- Inlet/Outlet: 3/8″ F x 1/4″ F
Key Strengths:
- Features Suttner’s signature Easy-Pull trigger design, dramatically reducing hold force.
- Impact-resistant plastic housing protects internal forged brass components.
- Fully rebuildable—replacement valve kits are widely available, extending total product lifespan.
Best For: Daily commercial cleaning contractors, fleet washers, and property maintenance crews needing long-term reliability.

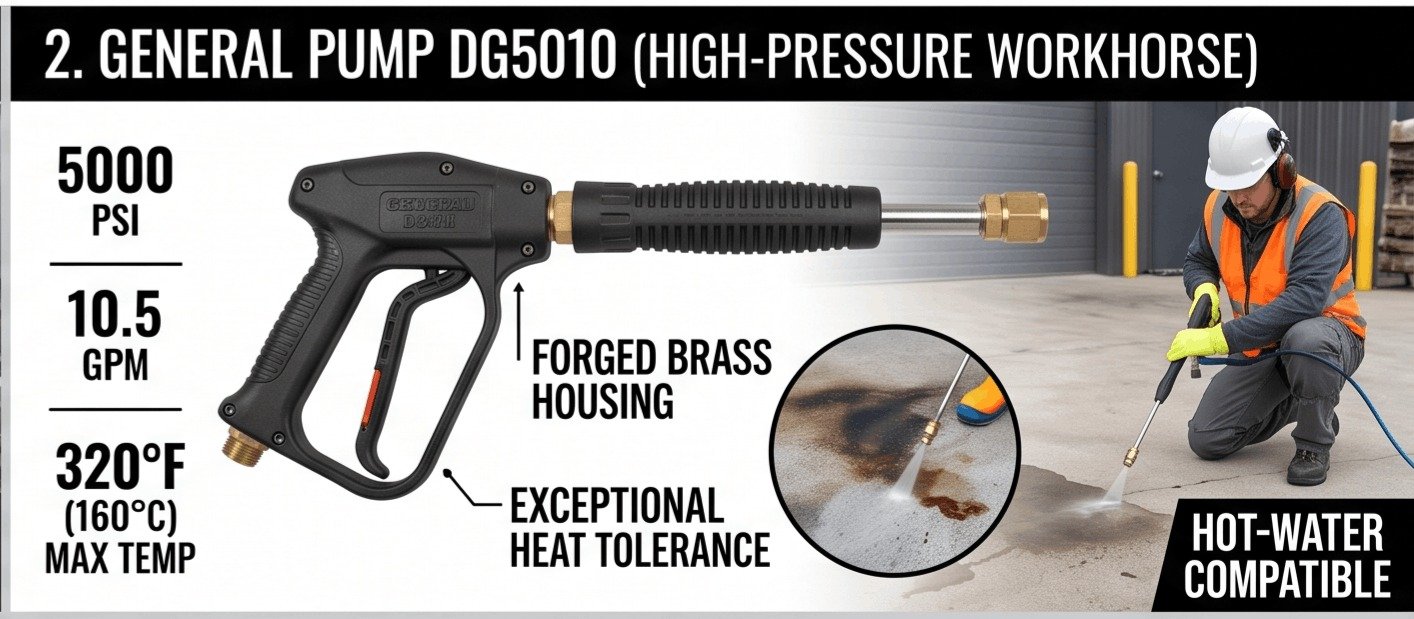

2. General Pump Spray Gun DG5010 (Best High-Pressure Workhorse)
When dealing with ultra-high pressure applications, the General Pump DG5010 delivers extreme performance and rugged internal construction.
- Max Pressure: 5000 PSI
- Max Flow Rate: 10.5 GPM
- Max Temp: 320°F
- Inlet/Outlet: 3/8″ F x 1/4″ F
Key Strengths:
- Extra-heavy-duty forged brass housing built for grueling environments.
- Exceptional heat tolerance, making it ideal for continuous hot-water applications.
- Precise trigger response with smooth shutoff to avoid pressure spikes.
Best For: Heavy industrial cleaning, oil stain removal, and high-PSI hot-water washing rigs.

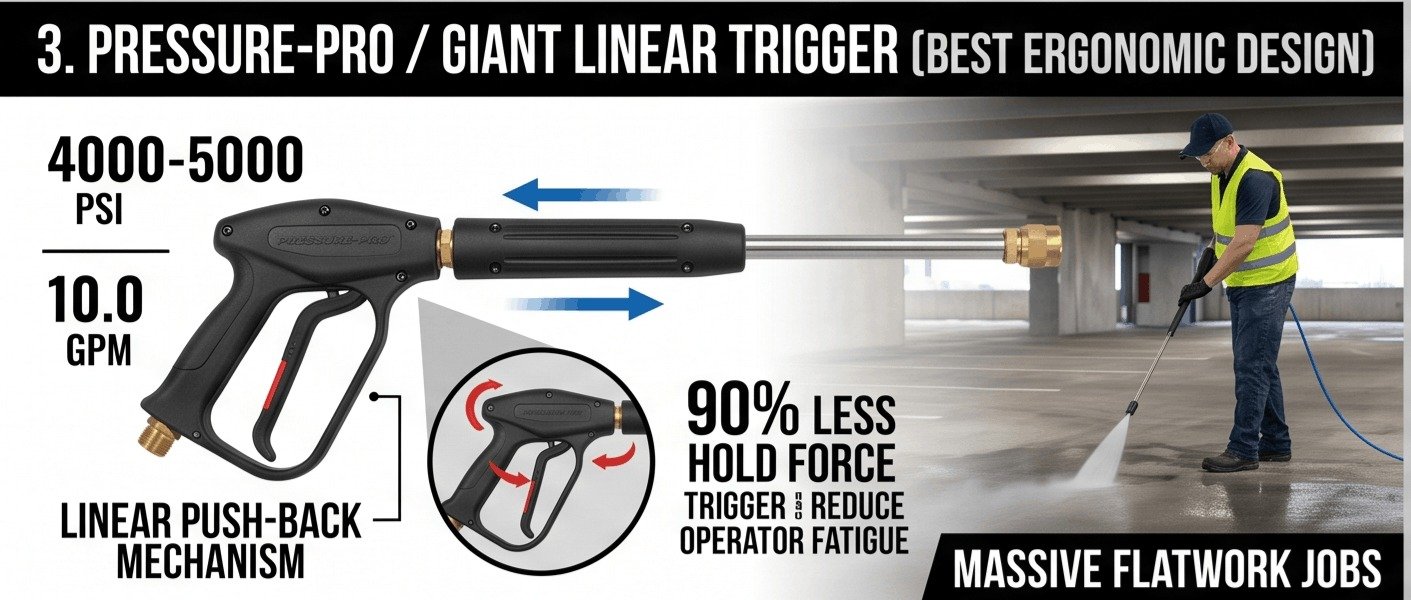

3. Pressure-Pro / Giant Linear Trigger Gun (Best Ergonomic Design)
For technicians suffering from hand fatigue or arthritis, Linear (Zero-Force) style trigger guns are game-changers. Unlike standard pistol-grip guns where the trigger pivots at the top, linear guns push straight back inline with the flow stream.
- Max Pressure: 4000 PSI – 5000 PSI
- Max Flow Rate: 10.0 GPM
- Max Temp: 300°F
- Inlet/Outlet: 3/8″ F x 1/4″ F
Key Strengths:
- Requires up to 90% less holding force once the trigger is engaged.
- Allows operators to use their palm or whole hand rather than just two fingers.
- Durable stainless steel internal seats and balls prevent premature wear.
Best For: Operators undertaking massive flatwork jobs, parking garage washing, or all-day commercial washing schedules.

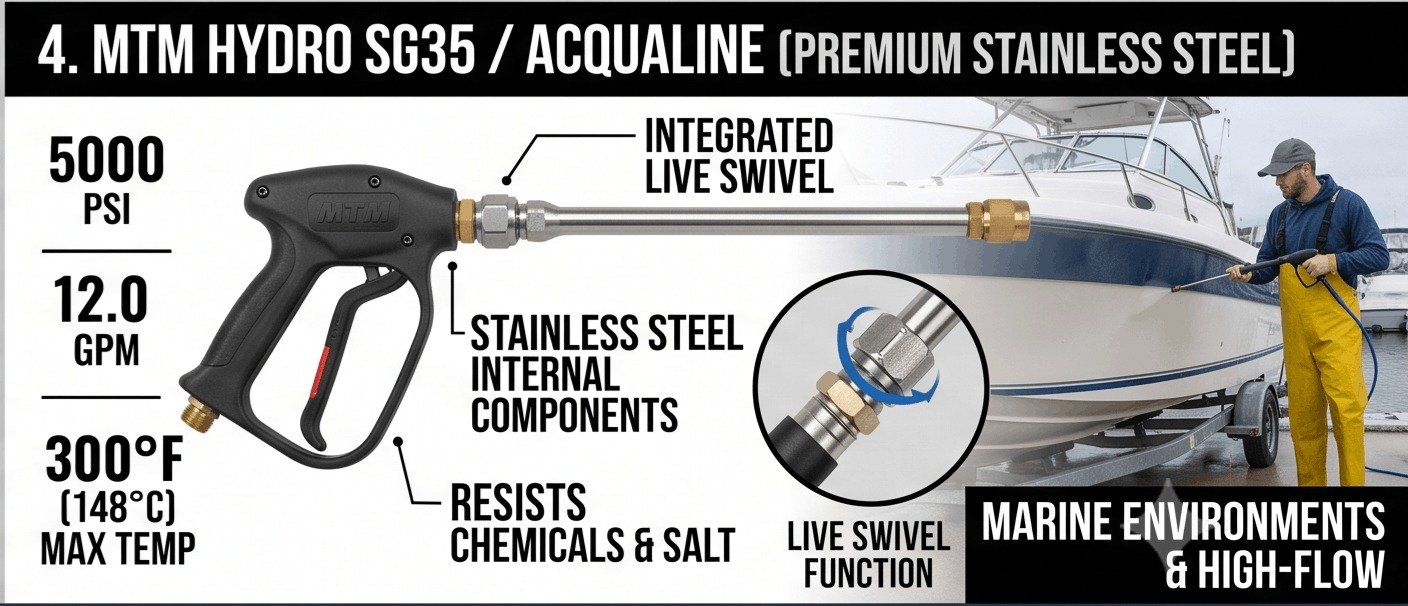

4. MTM Hydro SG35 / Acqualine Spray Gun (Best Premium Stainless Steel Gun)
MTM Hydro is known for high-precision pressure washer accessories, and the SG35 series represents top-tier Italian engineering.
- Max Pressure: 5000 PSI
- Max Flow Rate: 12.0 GPM
- Max Temp: 320°F
- Inlet/Outlet: 3/8″ F Swivel Inlet x 1/4″ F Outlet
Key Strengths:
- Stainless steel internal components resist aggressive chemicals, soaps, and salt water.
- Comes pre-equipped with an integrated live swivel to prevent hose twisting.
- Ergonomic handle contours provide a comfortable grip even in wet conditions.
Best For: Chemical spraying, vehicle detailing setups, marine environments, and high-flow washing.
Commercial Pressure Washer Gun vs. Surface Cleaner Compatibility
Many contractors connect spray guns directly to extension lances or surface cleaning attachments. It is vital to understand how your spray gun interacts with surface cleaners.
Internal Link Suggestion: To maximize flatwork efficiency, combine your high-GPM gun setup with a top-rated [Best Commercial Pressure Washer Surface Cleaner].
When operating a walk-behind surface cleaner, you have two primary setup options:
- Mounted Trigger Gun: Mounting the spray gun directly to the surface cleaner’s handlebar using an inlet whip hose.
- Integrated Spray Valve: Operating surface cleaners that feature built-in shutoff handles.
Ensure your gun’s GPM rating matches or exceeds the surface cleaner’s combined nozzle flow rate. Restricting GPM at the spray gun causes backpressure, overheating the pump and reducing cleaning speed.

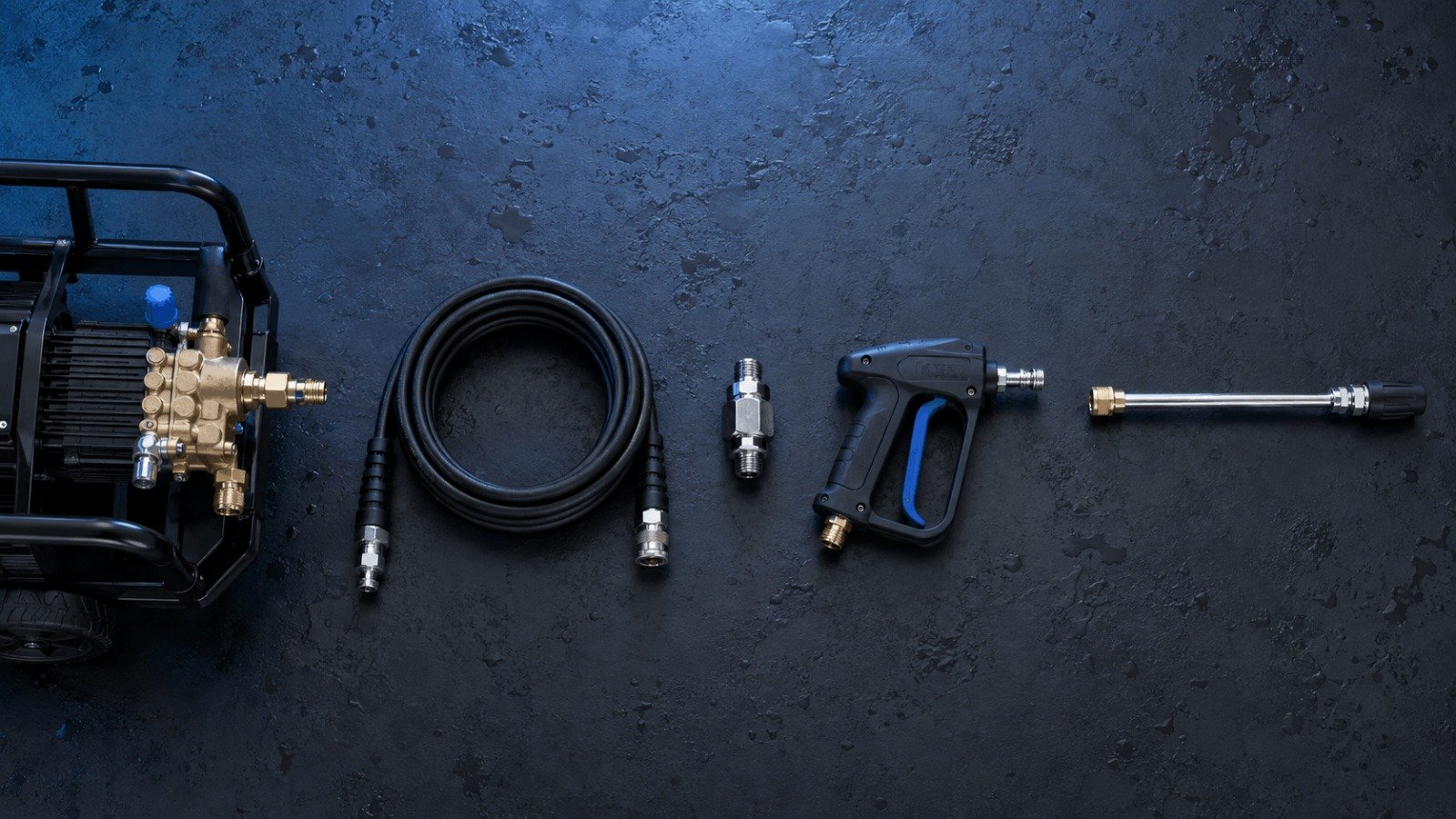

How to Set Up and Maintain Your Spray Gun
Proper installation and routine maintenance will extend the life of your commercial pressure washer gun significantly.
[ Commercial Pressure Washer Pump ]
│
▼
[ Heavy-Duty Hose (3/8″ Quick-Connect) ]
│
▼
[ 3/8″ Swivel Inlet ➔ Spray Gun Body ]
│
▼
[ 1/4″ Outlet ➔ Stainless Steel Wand/Lance ]
│
▼
[ Quick-Connect Nozzle or Surface Cleaner ]
Installation Steps
- Wrap Threads Properly: Apply PTFE thread sealant tape (5-6 wraps clockwise) or medium-strength thread sealant paste to male NPT threads before threading them into the gun inlet/outlet.
- Install a Live Swivel: Thread a 3/8″ male NPT stainless steel swivel into the gun inlet. This allows full 360-degree rotation during operation.
- Attach Wand Extension: Secure a 24-inch to 48-inch stainless steel lance to the front 1/4″ outlet for comfortable standing geometry.

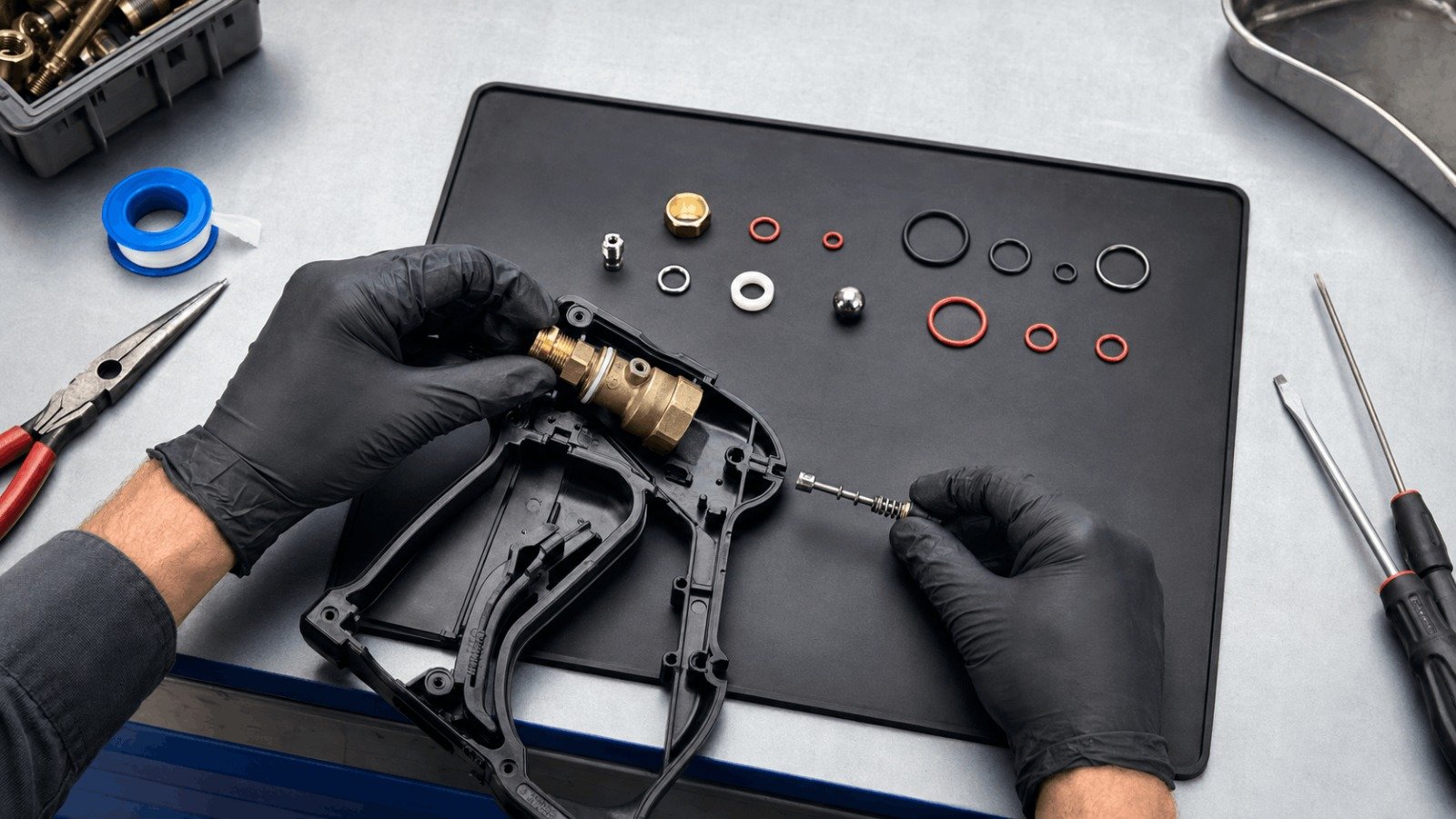

Maintenance & Troubleshooting Tips
- Gun Leaking from Barrel: If water drips out of the barrel while the trigger is released, the internal ball valve or Teflon seat is worn. Install an inexpensive gun rebuild kit (O-rings, valve stem, ceramic ball) rather than replacing the whole gun.
- Leaking Around Trigger Pin: Worn internal stem seals cause water to weep down the trigger handle. Disassemble the housing and replace the stem packing seal.
- Winterization: Before winter storage, flush RV antifreeze through the gun to prevent trapped water from freezing and cracking the internal brass manifold.
Frequently Asked Questions (FAQs)
What is the difference between a residential and commercial pressure washer gun?
Commercial spray guns use heavy-duty brass or stainless steel internal components, support higher PSI (4000+) and GPM (8-12+), tolerate hot water up to 300°F, and offer anti-fatigue trigger mechanisms. Residential guns use plastic components, lower pressure limits, and lack rebuildable internal valves.
Can I use a 5000 PSI rated spray gun on a 3000 PSI pressure washer?
Yes! It is completely safe to use a higher-rated gun on a lower-rated machine. A 5000 PSI gun easily handles 3000 PSI and will likely last longer due to its heavy-duty construction.
Why is my pressure washer gun trigger hard to squeeze?
High internal pressure combined with rigid internal springs creates trigger resistance. Upgrading to an Easy-Pull or Zero-Force linear spray gun minimizes the effort needed to depress and hold the trigger.
Should I get a gun with a built-in swivel?
Yes. An integrated swivel or an added screw-on swivel prevents your pressure hose from twisting into tight coils, protecting the hose inner braid and making maneuvering significantly easier.
Final Thoughts: Which Spray Gun Should You Buy?
Your spray gun is the tool you hold all day long—investing in a high-quality model directly impacts productivity, physical safety, and cleaning efficiency.
- Pick the Suttner ST-2300 for all-around reliability and easy maintenance.
- Choose the General Pump DG5010 if you operate high-temp hot water systems.
- Go with a Linear / Zero-Force Gun if hand fatigue is stopping you from completing larger jobs efficiently.
By pairing a commercial-grade trigger gun with the right high-PSI hose, triplex pump, and spray wand, your commercial pressure washing rig will handle any cleaning job effortlessly.
Explore Related Guides:
- Learn how to choose the right engine setup in our guide on [Honda Pressure Washer Parts] & engines.
- Need maximum cleaning power? Read our head-to-head analysis on [Best Commercial Pressure Washers].
Helpful Resources and Manufacturer Information
Use these trusted resources to verify product specifications, learn safe operating practices and find professional pressure-washing guidance:
- Suttner Commercial Spray Guns – Official specifications for Suttner professional spray guns, including pressure, flow rate and connection sizes.
- Suttner ST-2300 Operating Instructions – Manufacturer guidance covering intended use, safety controls, installation and operation.
- General Pump DG5010 Specifications – Official pressure, flow, temperature and inlet/outlet specifications for the DG5010 commercial spray gun.
- MTM Hydro SG35 Spray Gun – Manufacturer information for the SG35’s pressure rating, flow capacity, temperature limit and integrated swivel.
- Giant Industries Shut-Off Guns – Official information about Giant’s standard, linear, rear-load and industrial pressure-washer guns.
- CDC Pressure Washer Safety – Essential precautions for preventing injection injuries, electric shock and other pressure-washing accidents.
- OSHA Guidance for High-Pressure Water and Steam Cleaning – Guidance on protective clothing, eye protection and PPE for high-pressure or hot-water cleaning.
- Power Washers of North America – Professional training, certification and safety education for commercial pressure-washing contractors.
Always confirm the spray gun’s PSI, GPM, temperature rating and connection sizes directly with the manufacturer before connecting it to a commercial pressure washer. Never operate equipment beyond its rated limits.
